| Specification | Details |
|---|---|

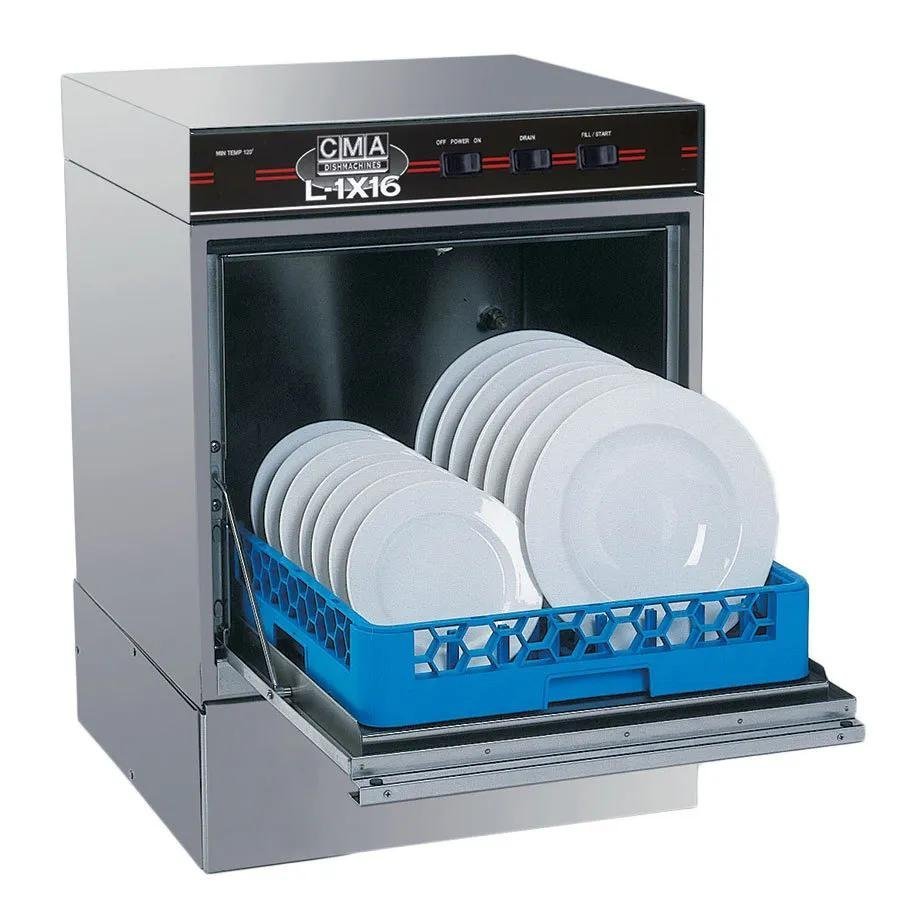

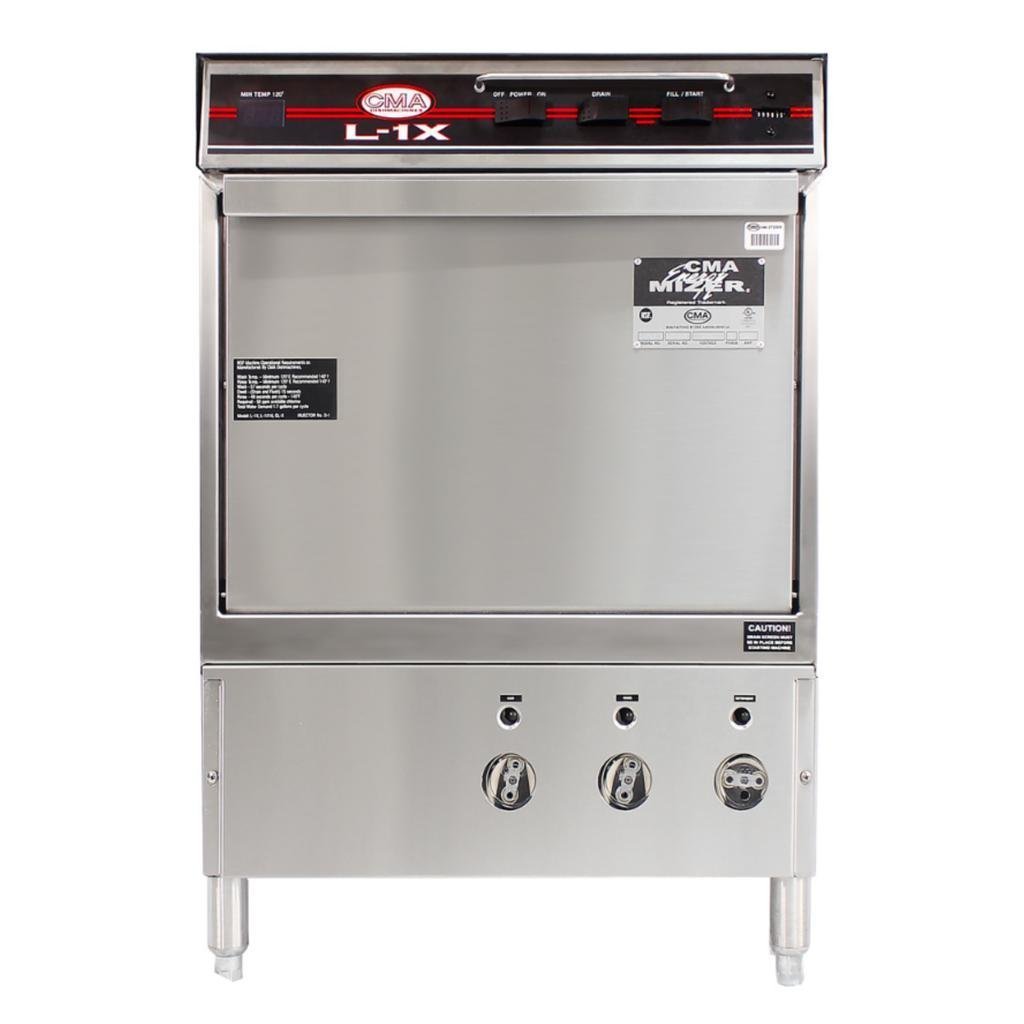

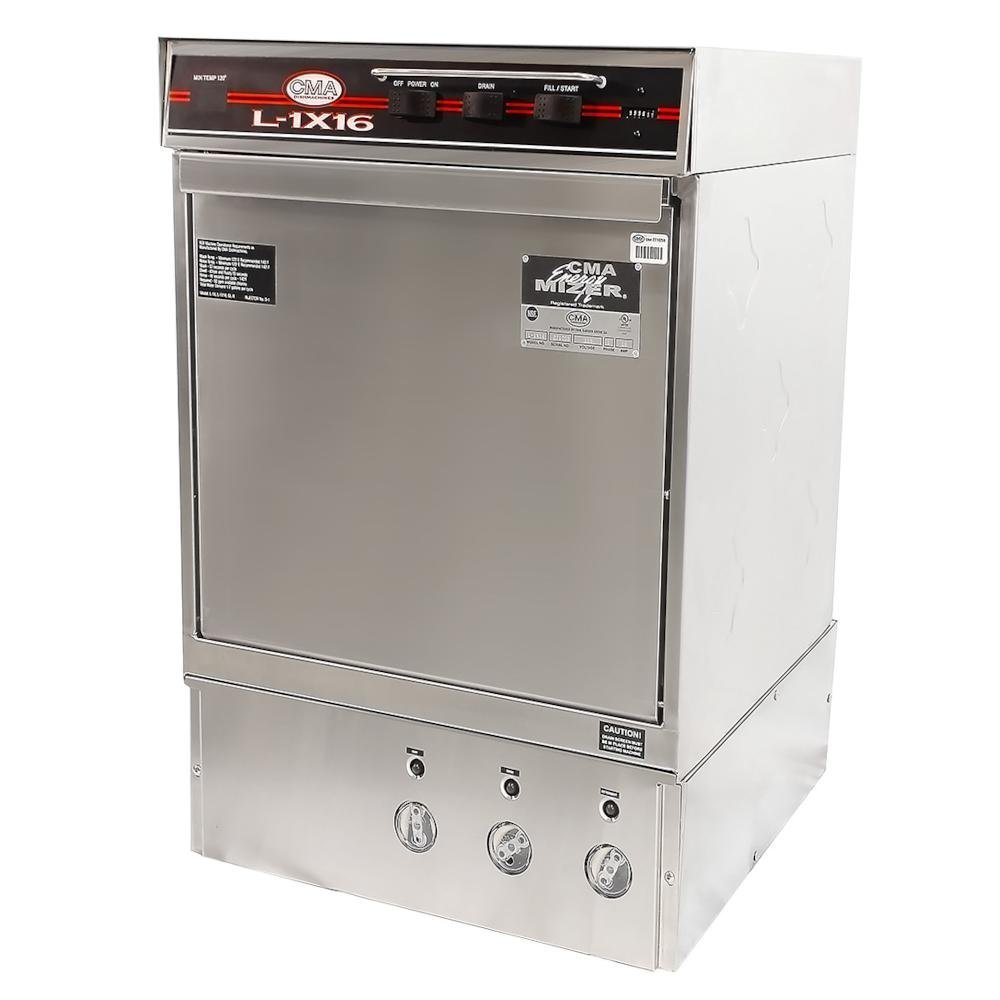

| Model | L-1X16 W/HTR |
| Type | Low-temperature undercounter dishwasher |
| Sanitizing | Chemical |
| Capacity | 30 racks/hour |
| Cycle time | 2 minutes |
| Rack size | 20″ × 20″ |
| Dish clearance | 16″ |
| Wash pump | 1 HP |
| Wash pump capacity | 35 GPM |
| Water per cycle/rack | 1.7 gal |
| Water consumption | About 41 gal/hour |
| Wash tank | 1.7 gal |
| Voltage | 115V |
| Amperage | 16 A |
| Phase | 1-phase |
| Frequency | 60 Hz |
| Width | 24″ |
| Depth | 23.5″ |
| Height | 34.25″ |
| Construction | Stainless steel |
| Drain | Pumped drain, 1″ connection |
| Water inlet | 1/2″ |
| Weight | Approximately 175–196 lb, depending on configuration/source |
